Outside

• Locked or unlocked by key – Safety and Secure Modes
• Bolt hold-back by key (Passage Mode®)

Inside

• Locked or unlocked by key (Secure Mode®)
• Locked by turn knob (Safety Mode®)
• Bolt hold-back by knob (Passage Mode)

Backset

• 60 to 70 mm adjustable bolt

Door thickness

• 32 to 48 mm.
   32 to 36 mm doors require spacer ring (included)

Features

• Lockwood 001 6 pin barrel

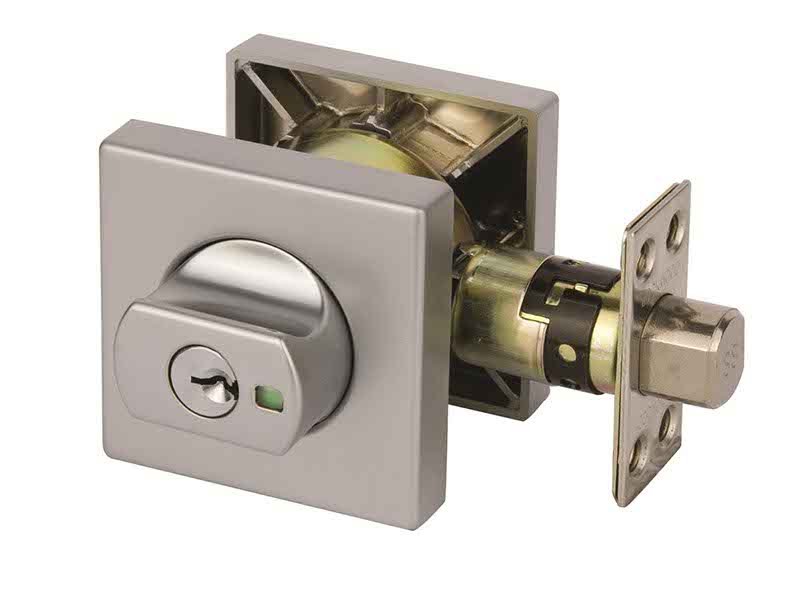

• Multi-mode slimline double cylinder deadbolt.
• Safety release to prevent being locked in.
• High strength counter balance bolt.
• High security cut resistant stainless steel bolt.
• Box strike with concealed cross grain door frame strengthening screw.

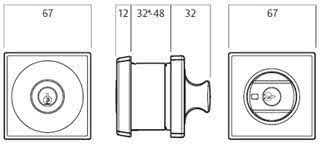

• Rose width 67 mm.
• Outside projection 12 mm.
• Inside projection 32 mm.
• Compatible to most restricted keying systems.
• Finished in satin chrome brushed.
• Supplied display pack.
